BZCT8-63 type counter is a high-performance counter with 6-digit count value, preset value double display, 3 relay outputs, free setting of decimal point position and count step, accurate counting; permanent power failure data storage, 3 control outputs, strong anti-interference performance; using large-size high-brightness digital tube display, combination keyboard operation is simple and beautiful appearance.

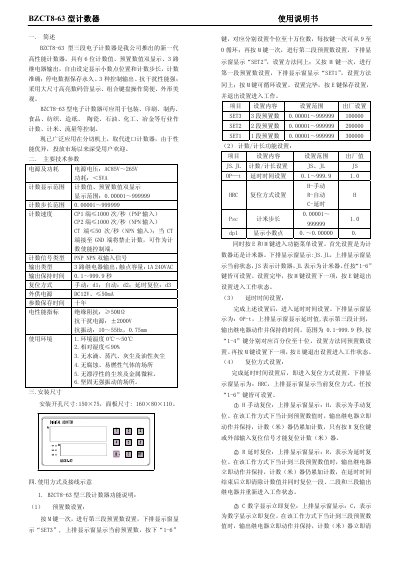

This manual describes the BZCT8-63 three‑stage electronic counter, highlighting its 6‑digit display, dual preset values, and three relay outputs. It explains the device’s ability to set decimal points, counting step size, and its strong anti‑interference performance, making it suitable for many industrial applications.
The document includes detailed technical parameters, installation dimensions, wiring diagrams, and step‑by‑step procedures for configuring preset numbers, counting modes, delay times, and reset methods. Proper wiring practices and environmental limits are also covered to ensure reliable operation. This manual is written in Chinese.
| Power supply voltage | AC85V–265V |
|---|---|
| Counting range | 0.00001–999999 |
| Counting step range | 0.00001–999999 |
| Counting speed (CP1) | ≤1000 counts/s |
| Counting speed (CP2) | ≤1000 counts/s |
| Counting speed (CT) | ≤50 counts/s |
| Relay output contacts | 1 A 240 VAC |
| Output hold time | 0.1–999.9 s |
| Parameter save duration | 10 years |
| Insulation resistance | ≥50 MΩ |
| Anti‑interference voltage | ±2000 V |
| Operating temperature | 0 °C–50 °C |
| Relative humidity | ≤90 % |
| Installation opening size | 150 mm × 75 mm |
| Panel dimensions | 160 mm × 80 mm × 110 mm |
The output hold time can be set between 0.1 s and 999.9 s.
The counter saves parameters for up to ten years without power.
