The SAS2000-M controller is a temperature controller with an independent adjustable limit temperature extension control circuit, suitable for controlling electrically driven valve for floor heating equipment and water system heating.
This manual introduces the SAS2000-M temperature controller, describing its independent temperature regulation function and basic parameters such as input voltage, output current, and temperature range. It also lists technical specifications like control accuracy, protection rating, and dimensions.

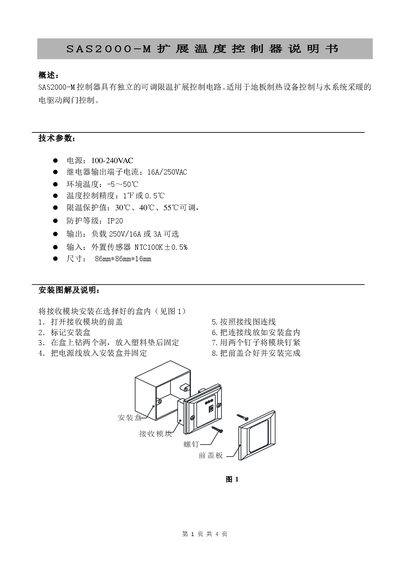

Installation steps, wiring diagrams, and operating procedures are detailed, including LED status indicators for power, heating, and signal reception. Safety precautions and customer service contacts are provided for proper setup and maintenance. This manual is written in Chinese.
| Input voltage | 100-240 VAC |
|---|---|
| Output terminal current | 16 A / 250 VAC |
| Operating temperature range | -5 °C to 50 °C |
| Temperature control accuracy | 1 °F or 0.5 °C |
| Limit temperature protection settings | 30 °C, 35 °C, 40 °C selectable |
| Ingress protection rating | IP20 |
| Sensor input | NTC 100 kΩ ±0.5 % |
| Dimensions | 86 mm × 86 mm × 16 mm |
The POWER LED lights up when the controller is receiving power.
The ON LED illuminates when the heating function is engaged.
Cut the power supply, ensure external sensors are correctly connected, and follow local and national regulations before installation or maintenance.
