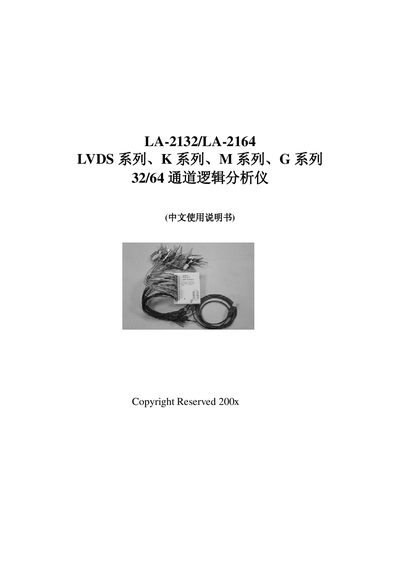

This document provides instructions for using the LA-2132/LA-2164 LVDS series, K series, M series, G series 32/64 channel logic analyzers, including system environment, hardware installation, software installation, operation guide, trigger mode settings, etc.
The LA-2132 series includes LVDS, K, M and G variants of 32‑ or 64‑channel logic analyzers. This manual provides hardware installation steps, software driver installation, and detailed operation instructions such as trigger settings and clock source calibration.
It also explains how to expand a 32‑channel unit to 64 channels using a 20‑pin flat cable, lists required computer specifications, and describes supported Windows operating systems for the USB driver. This manual is written in Chinese.
| Maximum Bandwidth | 250 MHz (K2 variant) |
|---|---|
| Memory Capacity | 256 KB (K2 variant) |
| Number of Channels | 32 channels (LVDS version) |
| Expandable Channels | Can be expanded to 64 channels |
| Trigger Levels | 2‑level trigger (K2 variant) |
Use a 20‑pin flat cable to connect two LA-2132 units and connect each unit to a USB port; ensure the computer power can support both units.
The manual lists drivers for Windows 98/ME, Windows 2000, and Windows XP.
