This is an instruction manual for xaircraft diy x4/x8 parts assembly. It introduces the installation methods of device mounting plate, fuselage lower plate, fuselage upper plate, frame arm, load mounting pipe mount, load mounting pipe fixer, battery mounting plate and other parts.

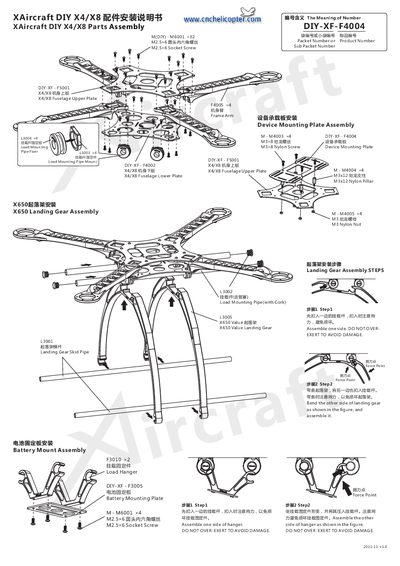

The manual details the assembly of the XAircraft DIY X4/X8 aircraft, including the fuselage upper and lower plates, landing gear, device mounting plates, and battery mounting components. Each section lists the required fasteners and provides illustrated steps to avoid over‑exertion during construction.
Additional pages cover motor mounting plate installation, compatible motor specifications, and a complete parts list with part numbers and quantities. The document also includes safety notes and reference drawings for accurate alignment of components.
| Compatible motor type | 22 serial motor (e.g. 2212) |
|---|---|
| Recommended propeller size | 10 inch blade |
| Minimum ESC current rating | >10A |
Yes, the manual states that a 22 serial motor such as the 2212 can be used.
The parts list is provided on page 3 and page 4 of the manual, showing part numbers, names, and quantities.
