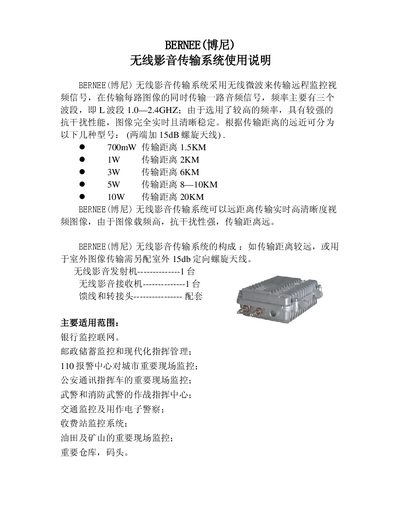

BERNEE wireless audio and video transmission system instruction manual, can transmit real-time high-definition video images over long distances
The BN-01 series is a wireless video transmission system that operates in the 0.96‑2.4 GHz bands with selectable power levels ranging from 700 mW to 10 W, delivering transmission distances from 1 km up to 20 km. It uses a 220 V AC power supply and includes indoor and outdoor antenna options for directional signal boosting.
The manual covers installation steps, connection of the transmitter and receiver units, and safety precautions such as rain protection, avoiding direct sunlight, and securing the antenna. It also lists typical application scenarios for public safety, emergency services, and industrial monitoring. This manual is written in Chinese.
| Operating Frequency | 0.96 GHz / 1.2 GHz / 1.3 GHz / 2.4 GHz |
|---|---|
| Power Supply | AC 220 V |
| Dimensions | 230 mm × 180 mm × 80 mm |
| Maximum Range (10 W) | 20 km |
It operates in the 0.96 GHz, 1.2 GHz, 1.3 GHz and 2.4 GHz bands.
The system requires an AC 220 V power supply.
Using higher transmission power (up to 10 W) or adding a directional antenna can extend the range, potentially doubling it.
Install the unit outdoors with rain protection, avoid direct sunlight, secure the antenna, and use vibration‑proof mounting.
