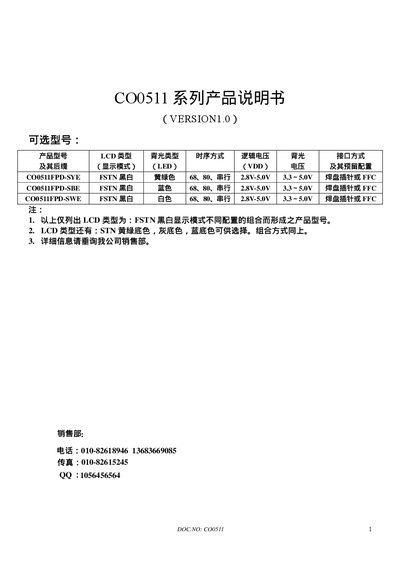

CO0511 series product manual, mainly introduces the product's physical characteristics, extreme parameters, LCM characteristics, photoelectric parameters, optical characteristic measurement methods, schematic diagrams, timing diagrams, command explanations, factory test reports, interface descriptions, etc.
This manual provides detailed information on the CO0511 series LCD modules, including physical dimensions, electrical characteristics, back‑light options and interface timing. It also contains programming examples and timing diagrams for 8080 and 6800 bus interfaces.
The document is organized into sections on physical characteristics, general parameters, LCM features, optical parameters, measurement methods, principle of operation, and detailed timing specifications for both 8080 and 6800 series micro‑processors. This manual is written in Chinese.
| LCD module size | 70.0 mm × 30.0 mm × 8 mm (max) |
|---|---|
| Active area | 54.0 mm × 31.0 mm |
| Resolution | 128 × 64 dots |
| Backlight forward voltage (LED) | 2.8 V – 3.2 V (typical 3.0 V) |
| Operating temperature (typical) | 0 °C – +30 °C |
| Storage temperature (typical) | -10 °C – +60 °C |
| Expected lifetime | 30 000 hours |
The module measures 70.0 mm in width, 30.0 mm in height and up to 8 mm in thickness.
The LED backlight forward voltage is typically 3.0 V, ranging from 2.8 V to 3.2 V.
The module operates from 0 °C to +30 °C under normal conditions.
The display has a resolution of 128 × 64 dots.
