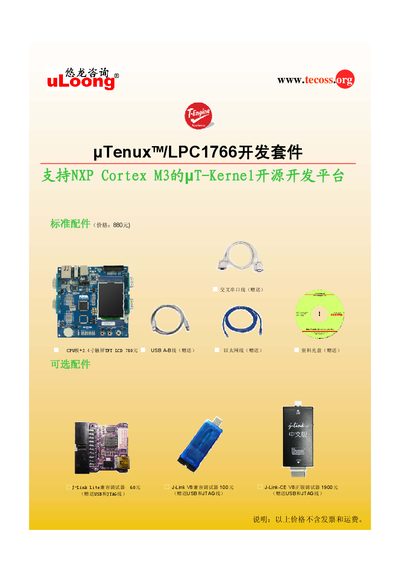

This document describes the features and characteristics of the μT-Kernel open source development platform μTenuxTM/LPC1766 development kit that supports NXP Cortex M3.
This manual describes the Tenux LPC1766 development board hardware, including its NXP ARM Cortex‑M3 CPU, 256 KB flash, 64 KB SDRAM, and a variety of interfaces such as MicroSD, LCD, USB, JTAG, Ethernet and CAN. It also lists the board dimensions (120 mm × 120 mm) and auxiliary functions like RTC, LEDs, keys and a joystick.
The document also covers the supported software environment: GNU‑based Eclipse IDE (Yagarto), uT‑Kernel, HT‑Kernel, and provides example projects, kernel sources and community support information. Warranty details and contact information are included as well. This manual is written in Chinese.
| CPU | NXP ARM Cortex‑M3 LPC1766 (100 MHz) |
|---|---|
| Flash ROM | 256 KB |
| SDRAM | 64 KB |
| Interfaces | MicroSD, LCD, Serial, USB, JTAG, Ethernet, CAN |
| Other Functions | RTC, 8 × LED, 2 × KEY, 1 × JOYSTICK |
| Dimensions | 120 mm × 120 mm |
It uses an NXP ARM Cortex‑M3 LPC1766 running at 100 MHz.
It provides MicroSD, LCD, Serial, USB, JTAG, Ethernet and CAN interfaces.
