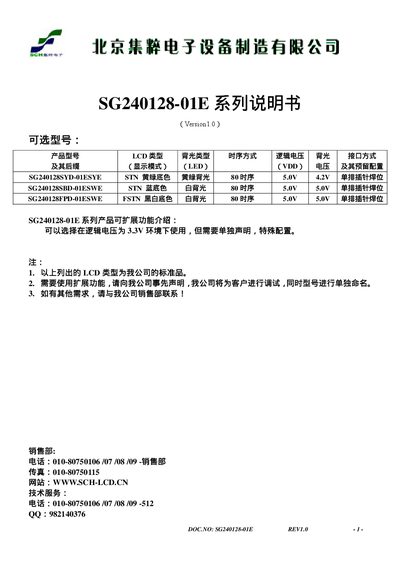

This document is a manual for the SG240128-01E series LCD display module. It describes the different models of LCD type, backlight type, timing mode, logic voltage, etc. It also provides information on expandable features and contact details.
The SG240128-01E series LCD module from SCH‑LCD provides a 240 × 128 dot STN display with selectable backlight colors. The document describes the module’s electrical characteristics, mechanical dimensions, timing parameters, and register map, and includes example code for initializing and driving the display.
It also outlines the required supply voltages, operating temperature limits, and recommended usage conditions, helping developers integrate the module into embedded systems and customize display functions. This manual is written in Chinese.
| Module size (L × W × H) | 144.00 × 104.00 × 13.00 mm |
|---|---|
| Viewable area | 114.00 × 64.00 mm |
| Backlight colors | Yellow, White, Other |
| Operating temperature | -20 °C to +70 °C |
| Display lifetime | 30 000 hours |
The module measures 144.00 mm × 104.00 mm × 13.00 mm (L × W × H).
It operates from –20 °C to +70 °C.
The backlight can be yellow, white, or a third color indicated as “疫色”.
