DM19264C is a graphical dot matrix liquid crystal display with a working voltage of +5V ± 10%, featuring full screen dots, 6-bit control bus and 8-bit parallel data bus input and output interfaces compatible with M6800 series timing, and an internal display data latch

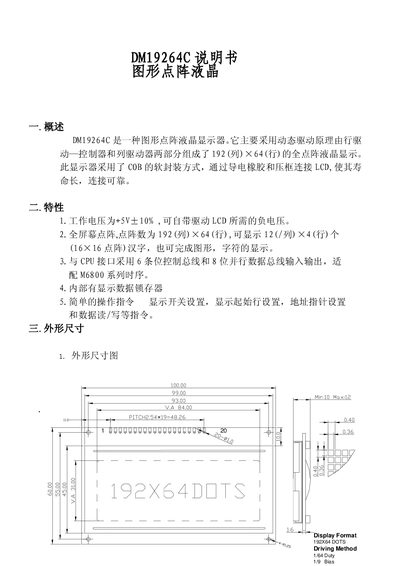

The DM19264C is a graphic LCD module with a resolution of 192 × 64 dots. It uses a COB package and is driven by a standard KS0108 controller compatible with M6800‑series timing. The document provides detailed dimensions, electrical characteristics, pin assignments, and operating procedures.
The manual also includes safety and handling guidelines, such as static‑sensitive precautions, recommended mounting methods, and warranty information. It is intended for engineers integrating the display into embedded systems. This manual is written in Japanese.
| Display size | 100.0 × 60.0 mm |
|---|---|
| Viewing area | 84 × 31 mm |
| Dot count | 192 × 64 |
| Dot pitch | 0.52 × 0.52 mm |
| Dot size | 0.48 × 0.48 mm |
| Supply voltage (VCC) | 4.5 – 5.5 V |
| Operating temperature | 0 – 50 °C (typical), –20 – +70 °C (extended) |
| Storage temperature | -20 – +70 °C |
| Maximum current (no backlight) | 57 mA |
The display has 192 columns and 64 rows of dots (192 × 64).
It operates from a VCC of 4.5 V to 5.5 V.
When the BUSY line is high (BUSY = 1) the LCD is busy and will not accept new commands.
Store the module between –20 °C and +70 °C, preferably in a dry environment protected from light.
