ASpi16 programmer is a SPI FLASH programmer that supports multiple brands. It can simultaneously operate on up to 16 ICs, and it has the characteristics of fast programming speed and high accuracy.
The ASpil6 is an SPI flash programmer that supports 8‑bit SPI flash devices ranging from 1 Mbit to 64 Mbit. It can handle up to 16 ICs at once, providing fast and accurate programming with LED indicators for each socket.

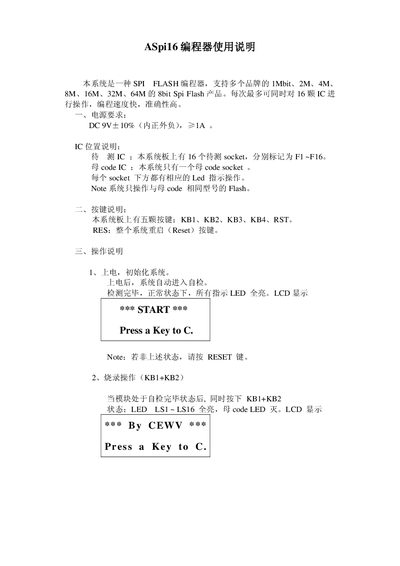

The manual describes power specifications (DC 9 V ±10 % at 1 A), the layout of the 16 test sockets and the single mother‑code socket, and the functions of the five control keys (KB1‑KB4, RST). It also covers USB connection, driver installation, and the step‑by‑step process for erasing, programming, and verifying flash chips. This manual is written in Chinese.
| Supported flash capacities | 1 Mbit, 2 Mbit, 4 Mbit, 8 Mbit, 16 Mbit, 32 Mbit, 64 Mbit |
|---|---|
| Maximum simultaneous ICs | 16 |
| Power supply | DC 9 V ±10 % (1 A) |
The device can program up to 16 ICs simultaneously.
It requires a DC 9 V supply with a tolerance of ±10 % and a current capacity of 1 A.
Pressing KB2 initiates the erase (ERASE) of the selected flash ICs.
After the self‑check, press KB1 + KB2 together to start the programming sequence.
