The CJX2‑Z series DC‑operated AC contactors are designed for power systems operating at 50 Hz or 60 Hz with rated voltages up to 690 V and currents up to 95 A. They are primarily used to control electric motors but can also switch loads such as welders, capacitor banks, and heating devices.

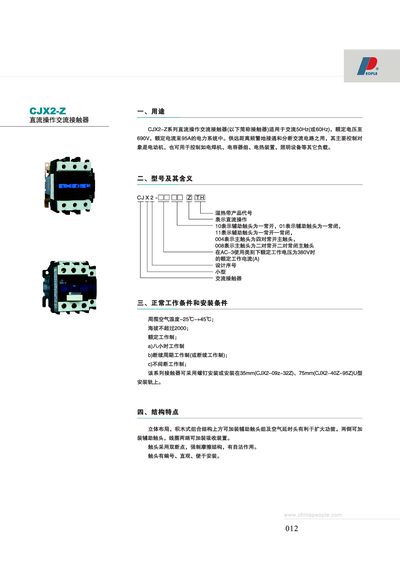

The manual lists model designations, technical parameters, mounting dimensions, wiring diagrams, and ordering requirements. It also describes normal operating conditions, installation methods, structural features, and the available control coil voltages. This manual is written in Chinese.
| Rated Current | 95 A |
|---|---|
| Control Coil Voltage | 24 V, 48 V, 110 V, 220 V DC |
| Operating Frequency | 1200 Hz |
| Mechanical Life | 1 000 万次 |
Control coil voltages are offered at 24 V, 48 V, 110 V, and 220 V DC.
The contactor can operate in ambient temperatures from –25 °C to +45 °C.
