CJX2 series AC contactor is mainly used in AC circuits with a rated working voltage up to 660V and a rated working current up to 95A. It is used for remote connection and disconnection of circuits and can be directly connected with thermal relays to form electromagnetic starters to protect circuits from overload. The contactor can also be assembled with auxiliary contact groups, air delay heads, mechanical interlocking mechanisms, etc., to form delay contactors, reversible contactors, and star-delta starters.
The CJX2 series AC contactors are designed for 50 Hz or 60 Hz AC circuits with a rated voltage up to 660 V and a rated current up to 95 A. They can be combined with thermal relays, auxiliary contact groups, air‑delay heads, and mechanical interlocks to form various starter configurations.

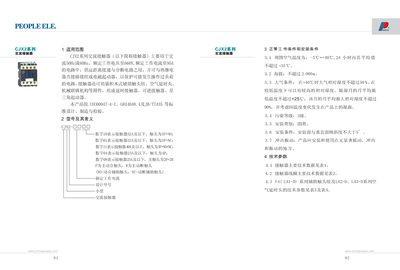

The document covers normal operating and installation conditions, technical parameters, wiring diagrams, step‑by‑step installation, and maintenance procedures, as well as ordering information and compliance with IEC60947‑4‑1, GB14048.4, and JB/T7435 standards. This manual is written in Chinese.
| Rated Voltage | 660 V |
|---|---|
| Rated Current | 95 A |
| Ambient Temperature Range | -5 °C ~ +40 °C |
| Maximum Altitude | 2000 m |
| Compliance Standards | IEC60947‑4‑1, GB14048.4, JB/T7435 |
The CJX2 contactor is rated for up to 660 V and a maximum current of 95 A.
Installation ambient temperature must be between –5 °C and +40 °C, with the average not exceeding +35 °C.
The coil terminal A1 should face upward, tighten the connection screws, and test the coil without load before commissioning.
It complies with IEC60947‑4‑1, GB14048.4, and JB/T7435 standards.
