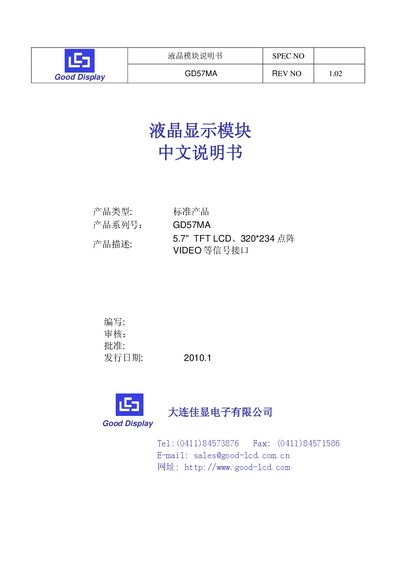

GD57MA LCD module manual, mainly introduces the module overview, basic parameters, product pictures, wiring diagrams, driver board interface definition, structure diagram, product marking, packaging and transportation, precautions and other content.
This manual describes the GD57MA 5.7" TFT LCD module, including its basic parameters such as size, resolution, brightness, and backlight type. It also details the electrical characteristics, operating voltage, current draw, and temperature limits.
The document contains pin‑out tables for the J102, J103 and J205 connectors, outlines the inspection standards for panel quality, and provides packaging and return guidelines. This manual is written in Chinese.
| Display Size | 5.7 inches (4:3) |
|---|---|
| Resolution | 320 (RGB) × 234 |
| Brightness | 200 cd/m² |
| Module Dimensions (W×H×D) | 126.3 mm × 100.0 mm × 57 mm |
| Power Consumption | 2.4 W (typical) |
Typical power consumption is 2.4 W.
