RW11-10/100 type fuse is composed of porcelain insulator, upper and lower static contacts and fuse tube. It has good breaking capacity and ensures high mechanical strength.

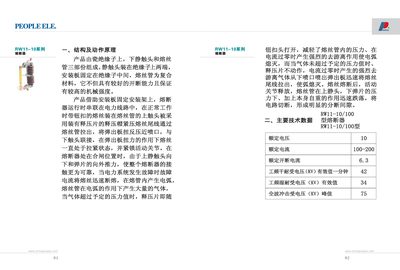

This manual provides the main technical data of the RW11-10/100 automatic drop-type fuse, including rated voltage, current, breaking capacity and various withstand voltages. It also describes the fuse's structure, operating principle, and the physical diagram of its components.
The document outlines the recommended operating environment, installation and usage precautions, and the information required for ordering the product, such as model, rated current and quantity. This manual is written in Chinese.
The arc tube should be installed at a 15‑degree angle to the vertical line.
It can operate up to 1000 m altitude, in ambient temperatures between –30 °C and +40 °C, and must not be placed in explosive, chemically corrosive or heavily vibrating environments.
The order should specify the product name and model, the fuse’s rated current, the quantity, and whether spare parts or accessories are needed.
