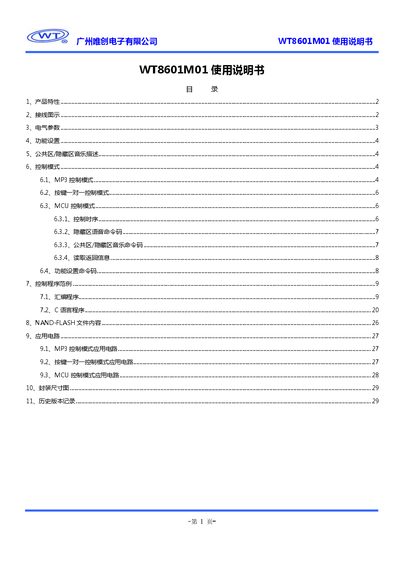

This document is about the user manual for the WT8601M01 product from Guangzhou Weichuang Electronics Co., Ltd. It describes the features of the product, including support for MP3 audio playback, variable and constant bitrate support, high-quality stereo audio output, and multiple control modes. It can be used in advanced household appliances, toys, car electronics systems, and other high-quality audio applications.
The WT8601M01 is an audio playback module that supports MP3 playback, multiple control modes (MP3, one‑to‑one, random, DSA) and offers up to 2 GB of NAND‑Flash storage. It operates from a 5 V DC supply and provides full‑speed USB 2.0 connectivity.
The manual describes the pin layout, functional operation, MCU interface commands, and includes version history and mechanical dimensions. It also outlines power consumption and typical current draw for various operating states. This manual is written in Chinese.
| Supported MP3 bitrate | 8 Kbps – 320 Kbps |
|---|---|
| Supported MP3 rate modes | VBR and CBR |
| Maximum NAND‑Flash capacity | 2 GB |
| USB interface speed | Full‑speed USB 2.0 |
| Operating voltage | DC 5 V |
The module can support up to 2 GB of NAND‑Flash memory.
One‑to‑one control mode can store a maximum of five songs.
It operates from a 5 V DC power supply.
The device provides full‑speed USB 2.0 connectivity.
