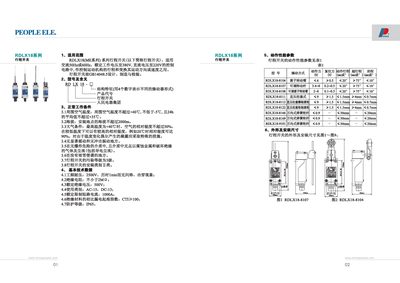

This document provides product information on the RDLX18 series limit switches, including model, operating mode, operating force, resetting force, operating stroke, overtravel, difference stroke, rated voltage, rated current, rated working current, rated working voltage, ambient temperature, protection level, terminal, external dimensions, and installation method.
The RDLX18 series stroke switches from Renmin Electric Appliance Group are offered in several variants such as RDLX18‑8104, RDLX18‑8107, RDLX18‑8111, etc. Each model provides different operating modes (rotary arm, adjustable rod, direct‑press plunger) and mechanical parameters like actuation force, reset force, stroke length and over‑stroke.
Electrical ratings are standardized across the series with a nominal voltage of AC 380 V / DC 220 V, a current rating of 0.95 A (AC) or 0.55 A (DC), and a short‑circuit withstand current of 5 A. Dimensional data and mounting hole specifications are also listed for each model. This manual is written in Chinese.
| Voltage rating (all models) | AC 380 V / DC 220 V |
|---|---|
| Current rating (all models) | AC 0.95 A / DC 0.55 A |
All RDLX18 series switches are rated for AC 380 V or DC 220 V.
