X2 series limit switches are suitable for AC 50Hz, voltage up to 380V and below, and rated working current of 2A circuits, used to control the limit of moving machinery, change the direction or speed of machinery.

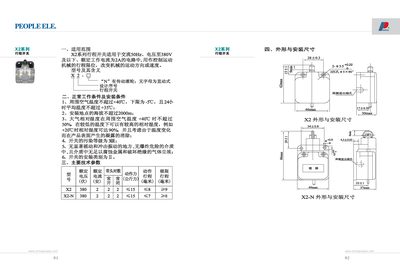

This manual describes the X2 series stroke switches, including the X2 and X2‑N variants. It covers the applicable range, normal operating conditions, installation requirements, and physical dimensions.
Key information includes rated voltage and current, actuation force, travel limits, environmental limits such as temperature, humidity, altitude, and installation class. The document also lists the technical parameters for each model. This manual is written in Chinese.
The surrounding air temperature must not exceed +40 °C and must not be lower than –5 °C.
The installation location must be at an altitude of no more than 2000 m.
