LX10 series limit switch is used in 50Hz, 380V AC and 220V DC hoist control line to protect the end of the mechanism.

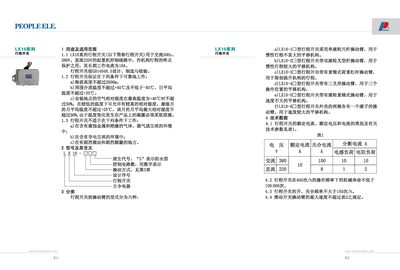

This manual describes the LX10 series stroke switches, including six variants (LX10‑1 to LX10‑6) designed for different motion and speed requirements. It outlines the technical data, rated voltage, current, and operating limits, as well as the mechanical structure of the switches.
Installation, usage, and maintenance procedures are detailed, with guidance on proper mounting, contact adjustment, lubrication, and ordering information. Environmental restrictions and prohibited conditions are also specified to ensure reliable operation in crane control circuits. This manual is written in Chinese.
| Maximum make/break frequency | ≤150 cycles/h |
|---|---|
| Operating temperature range | -50 °C to +40 °C |
The switch should not be used in environments with corrosive gases, insulating dust, conductive dust, or where there is severe vibration or shock.
The LX10‑4 model is designed for three operating positions.
Regularly apply lubricating oil to the friction parts of the switch.
