LX19 series travel switch, suitable for alternating current 50 Hz, rated voltage up to 380 V, direct current voltage up to 220 V control circuit, used to control the travel of the motion mechanism and change its motion direction or speed.
The LX19 series stroke switches are designed for control circuits with AC up to 380 V and DC up to 220 V, providing motion limit and direction control. They comply with GB14048.5 standards and are suitable for a range of industrial applications.

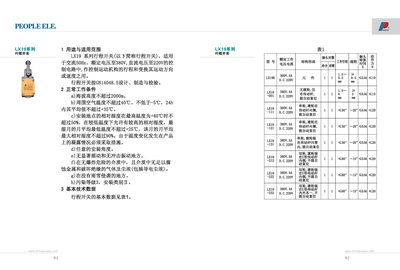

The document lists the basic technical data, normal operating conditions, and physical dimensions for each model (LX19K, LX19‑001, LX19‑111, etc.). Tables give rated voltage, current, stroke range, contact conversion time, and mounting size, while figures illustrate the switch configurations and dimensions. This manual is written in Chinese.
| Rated AC Voltage | 380 V |
|---|---|
| Rated DC Voltage | 220 V |
| Rated Current | 5 A |
| Operating Stroke | 1.5–3.5 mm |
| Maximum Operating Altitude | 2000 m |
No, they must be installed in environments without explosive danger and free of corrosive gases or dust.
