LXP1 series limit switch is a product of Siemens company, Germany. It meets the requirements of VDE0660 and IEC publication 337-1. It has beautiful appearance, durability, sensitive action, good protection performance, and wide range of application. It is the ideal product for the machine industry to update and replace. It has advanced international level of limit switch in the nineties.

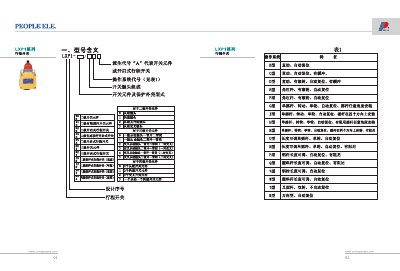

This manual describes the various operation systems of the LXP1 series stroke switch, including direct, automatic reset, buffered, lever, roller, and damped types. It explains the model coding, contact configurations, and the differences between opening and protective versions.
The document also lists the main technical data such as temperature range, insulation voltage, current ratings, mechanical and electrical life, and dimensional details. Finally, it outlines typical applications in AC/DC control circuits for converting mechanical signals to electrical signals in machinery. This manual is written in Chinese.
| Operating temperature range | -40°C to +85°C |
|---|---|
| Rated insulation voltage | AC 500 V, DC 600 V |
| Maximum operating voltage | 500 V (same polarity) |
| Rated heating current | 10 A |
| Mechanical life | 30×10 times |
| Electrical life at 1 A AC | 11.5×10 times |
| Plunger repeatability | 0.02 mm |
| Protective housing outlet hole size | M20×1.5 |
| Contact wire capacity (single core) | 2×25 mm² |
| Contact wire capacity (multi core) | 2×1.5 mm² |
It can operate from -40 °C up to +85 °C.
The switch is rated for 500 V AC and 600 V DC insulation.
The repeatability is 0.02 mm.
It is suitable for AC 40‑60 Hz control circuits up to 500 V AC and 600 V DC, converting mechanical signals to electrical signals for motion and speed control.
