JS14S series time relay is suitable for AC 50/60Hz, rated control power supply voltage below 380V or DC 24V control circuit as a time control element, according to the preset time to connect or disconnect the circuit. The product meets the requirements of JB/T10047, GB14048.5, IEC60947-5-1 standard.
The JS14S series time relay is designed for AC 50/60 Hz control circuits with a rated control voltage up to 380 V or DC 24 V. It complies with JB/T10047, GB14048.5 and IEC60947‑5‑1 standards and offers single‑stage delay functions with optional reset and pause features.

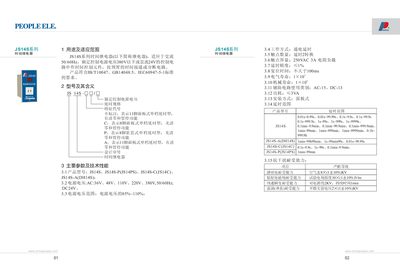

The manual provides wiring diagrams, panel layout, physical dimensions, installation guidelines, operating conditions, and detailed usage instructions, including how to set the delay time, use the reset and pause terminals, and safety precautions. This manual is written in Chinese.
| AC Power Supply Voltage | 36V, 48V, 110V, 220V, 380V (50/60 Hz) |
|---|---|
| Contact Rating | 250 VAC, 3 A resistive load |
| Delay Accuracy | ±1 % |
| Reset Time | ≤ 100 ms |
| Power Consumption | 3 VA |
| Installation Type | Panel‑mounted |
Connect the reset terminals (9 and 10) to the power source; the display will return to zero and the contacts will revert to the normally‑closed state.
The surrounding air temperature must not exceed +40 °C and must not be lower than the lower limit specified in the manual (approximately –20 °C).
