This product is an electric current relay, which has the characteristics of small size, light weight, sensitive action, reliable, universal AC and DC, and strong series.
The JL15 series current relay is a compact, lightweight, highly reliable relay suitable for AC 50 Hz 380 V or DC 440 V circuits with currents up to 600 A. It complies with GB14048.5 and the D207‑60 standard and can replace older JL3, JL4, JL5, and JL6‑L models.

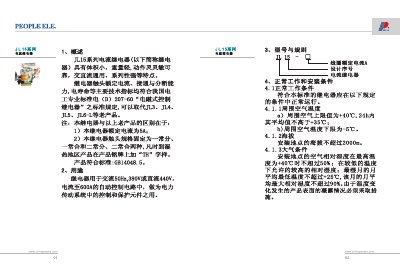

The manual details normal operating and installation conditions, including temperature limits (+40 °C upper, -5 °C lower), altitude ≤2000 m, humidity requirements, and installation class III. It also lists electrical characteristics, contact configurations, and ordering instructions. This manual is written in Chinese.
| Rated Current | 5 A |
|---|---|
| Contact Configuration | 1常分/1常合 and 2常分/2常合 |
| Operating Temperature Upper Limit | +40 °C |
| Operating Temperature Lower Limit | -5 °C |
| Maximum Installation Altitude | 2000 m |
| Pollution Degree | Degree 3 |
The JL15 relay has a rated current of 5 A.
It can be installed at altitudes up to 2000 m.
The relay is rated for pollution degree 3.
