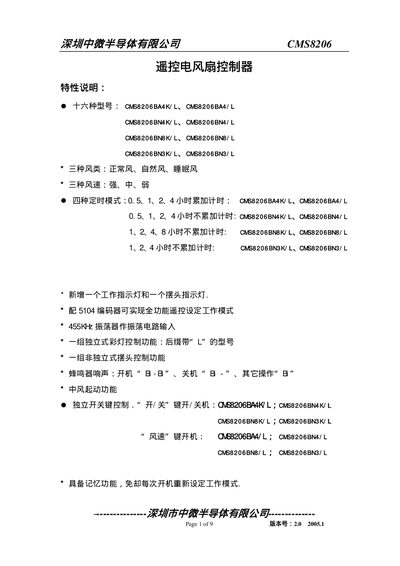

CMS8206 remote control electric fan controller, has 3 wind types, 3 wind speeds, 4 timing modes, etc., equipped with 5104 encoder can realize full function remote control setting working mode, with memory function.
The CMS8206 series is a remote‑control fan controller offering three fan modes (normal, natural, sleep) and multiple speed and timer settings. It supports independent lighting control, buzzer feedback, and can be configured via a 5104 remote unit.
The manual provides pin assignments, electrical characteristics, component lists, and timing diagrams for each model variant (e.g., BA4K, BN8L). It also describes how to set up the controller, adjust speed, and use the built‑in timer functions. This manual is written in Chinese.
| Output voltage range | 0.8‑5.5 V |
|---|---|
| Power loss | 500 nW |
| Operating temperature | -10 °C to 70 °C |
| Storage temperature | -40 °C to 125 °C |
It provides three fan modes: normal, natural, and sleep.
Three speed settings are available: low, medium, and high.
The controller operates from –10 °C to 70 °C.
