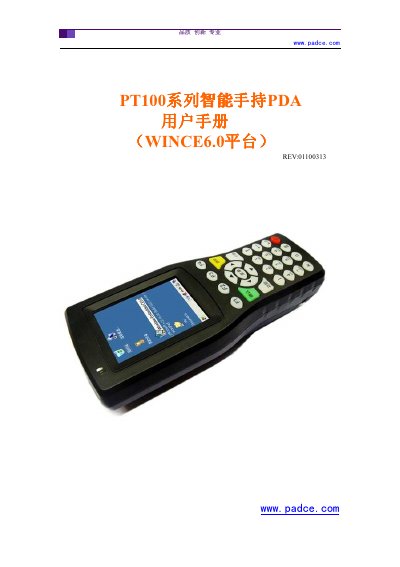

This document is a user manual for the PT100 series smart handheld PDA, providing detailed information on hardware specifications, software specifications, detailed product specifications and performance parameters, application areas, etc.
The PT100 series is a compact, industrial‑grade PDA built on a 32‑bit Samsung ARM9 processor and running Windows CE 6.0. It integrates GPRS, Wi‑Fi, GPS, RFID, barcode scanning and optional printer interfaces, targeting logistics, fast‑moving consumer goods and mobile enforcement applications.
This manual covers the device overview, hardware and software specifications, detailed performance parameters, system configuration, functional settings, application development guidance, ordering information and warranty terms, helping users install, operate, and maintain the PDA. This manual is written in Chinese.
| Display resolution | 320 × 240 (QVGA) |
|---|---|
| CPU | 32‑bit Samsung ARM9, up to 533 MHz |
| RAM | 128 MB DDR2 |
| Flash storage | 1 GB NAND flash (expandable to 256 MB) |
| Battery capacity | 4000 mAh |
| Operating temperature | 0 °C – 50 °C |
| Wi‑Fi standard | IEEE 802.11b/g |
| GPRS bands | 900/1800/1900 MHz |
| GPS hot start time | ≤ 10 s |
In sleep mode the device draws about 9 mA, allowing the 4000 mAh battery to last more than one month.
The PDA can be powered from the internal 4000 mAh battery or from an external 5 V / 1 A AC adapter via the USB port.
Yes, connecting a USB power adapter to the device’s USB port supplies power and simultaneously charges the battery.
