SECONA Handwheel Series User Manual

This document introduces the SECONA handwheels usage, installation, maintenance and other information.

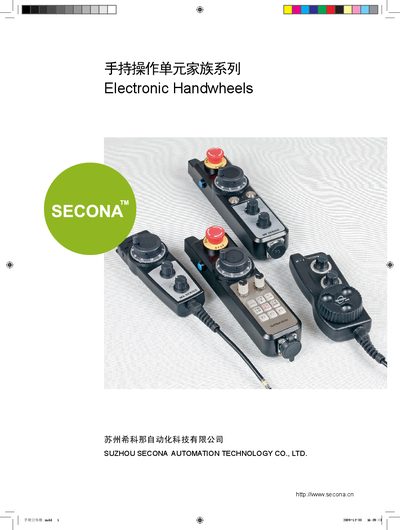

SECONA Handwheel Series User Manual - cover page
Brand
SECONA
Category
Industrial Robot
Document type
User Manual
Language
Chinese
Pages
12
File format
PDF
File size
1.8 MB
Published
15 March, 2012
Updated
30 September, 2023
MD5 checksum
45B3B7DC48EF8B3214988F549860731D
PDF
SECONA Handwheel Series User Manual PDF

About this manual

This manual covers safety warnings, required compliance with standards such as EN60204, EN12100 and EN ISO 13849‑1, and general handling rules for SECONA electronic handwheels. It explains the main functions, component descriptions, and proper installation procedures to ensure safe and reliable operation.

Detailed specifications for the M102, PMF, SMF, PMV and SMV handwheel series are listed, including voltage options, pulse‑per‑revolution settings, and wiring configurations. Cleaning, maintenance, and troubleshooting advice are also provided. This manual is written in Chinese.

What's inside

  • Safety Warnings
  • Main Functions
  • Component Description
  • Installation Procedure
  • Operation Instructions
  • Cleaning and Maintenance
  • Technical Specifications

Specifications

Operating voltage30 V max

Frequently asked questions

What is the maximum operating voltage for the handwheel?

The handwheel must not be operated above 30 V.
