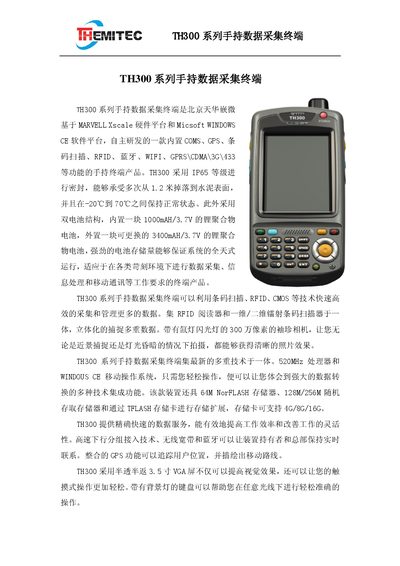

The TH300 series is a rugged handheld data‑collection terminal built on a MARVELL PXA270 processor and Windows Embedded CE. It integrates CMOS camera, barcode scanner, RFID, GPS, Wi‑Fi, GPRS/3G, and Bluetooth for versatile field use.
The manual provides technical specifications, battery information, environmental ratings, and contact details for sales and service. It also lists optional communication modules and explains the device’s IP65 protection and operating temperature range. This manual is written in Chinese.
| Processor | MARVELL PXA270 520 MHz |
|---|---|
| Operating System | Microsoft Windows Embedded CE 5.0/6.0 |
| ROM | 64 MB Nor Flash |
| RAM | 64 MB / 128 MB / 256 MB Mobile SDRAM |
| TFLASH Card Support | 46 GB / 8 GB / 166 GB |
| Display | 3.5‑inch 320×240 TFT, semi‑transparent half‑reflective, touch screen |
| Camera | 3 MP autofocus CMOS with flash |
| Main Battery | 3400 mAh, 3.7 V Li‑polymer (replaceable) |
| Backup Battery | 1000 mAh, 3.7 V Li‑polymer (non‑replaceable) |
| Operating Temperature | -20 °C to +70 °C |
| Storage Temperature | -40 °C to +70 °C |
| Humidity | 5 %–95 % RH non‑condensing |
| Protection Rating | IP65 (dust‑tight, water‑proof) |
| Dimensions | 150 mm × 76 mm × 30 mm |
| Weight | ≈350 g (including battery) |
The TH300 can operate from –20 °C up to +70 °C.
It features a 3.5‑inch 320×240 TFT with semi‑transparent half‑reflective technology and touch capability.
