VH-70 is a cost-effective and rugged mobile handheld data collection terminal with high performance, durability, and openness, suitable for use in harsh environments.
The VH‑70 is a rugged, high‑performance RFID hand‑held terminal designed for harsh environments. It runs Windows CE 5.0, supports 1D/2D barcode and HF/UHF RFID, and offers Wi‑Fi, GPRS, Bluetooth, USB and RS‑232 interfaces.

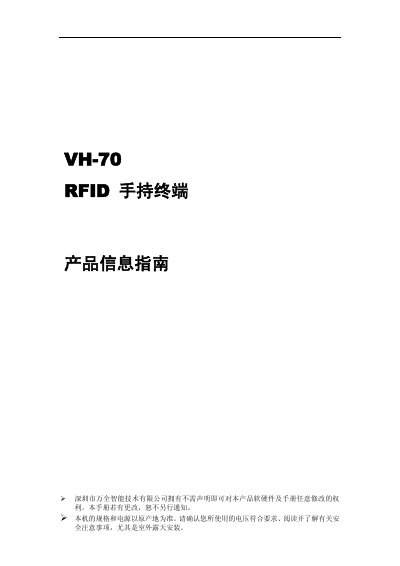

The manual includes detailed hardware specifications, a CD with development tools and demo programs, common fault diagnostics, and contact information for warranty and technical support. This manual is written in Chinese.
| Processor | 400 MHz |
|---|---|
| Memory | 128 MB Flash, 128 MB SDRAM (expandable to 1 GB via SD card) |
| Display | 3.5‑inch QVGA (240×320) TFT‑LCD with LED backlight |
| Operating System | Microsoft Windows CE 5.0 (multilingual) |
| Battery | 3.7 V 2800 mAh / 3200 mAh Li‑ion (internal backup 17 mAh) |
| Wireless Interfaces | Wi‑Fi (IEEE 802.11b/g), Bluetooth Class 2 V1.1, GSM/GPRS (900/1800/1900 MHz) |
| RFID Frequency | 865–956 MHz (ISO18000‑6B, EPC CLASS1 G2) |
| IP Rating | IP54 |
| Operating Temperature | -10 °C to 50 °C |
The device operates from –10 °C to 50 °C.
It is rated IP54 for dust and water protection.
Visit the website http://www.vanch.cn for specifications, downloads and support information.
