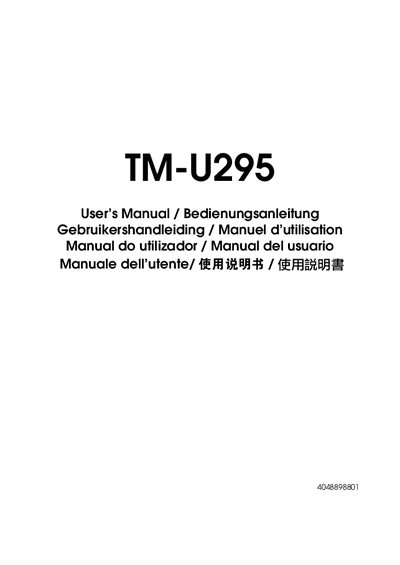

This document is the user manual for the TM-U295 printer, which provides information about the printer's various parts and DIP switch tables. Users can adjust the printer's parameters, such as serial and parallel interface settings, based on the information in the tables. The document also includes instructions for using the printer and troubleshooting methods.
This manual covers everything needed to get the Epson TM‑U295 receipt printer up and running. It includes safety precautions, unpacking steps, ribbon installation, paper loading, and detailed troubleshooting guidance.
The document also lists the technical specifications of the printer, such as printing method, speed, paper size, interface options, power consumption, and physical dimensions, helping users understand the capabilities and requirements of the device.
| Printing method | Impact dot matrix, 7‑pin shuttle type |
|---|---|
| Print speed | 1.9 to 2.3 lines/sec |
| Interface | RS‑232 serial or IEEE 1284 parallel |
| Weight | Approximately 1.6 kg |
Use the EPSON ERC‑27 ribbon cassette, turn the printer on, press the RELEASE button to enter paper‑release mode, open the cover, remove any existing ribbon, tension the new ribbon, and click the cassette into place.
Check that the power‑supply cables are correctly plugged into the printer, power unit, and outlet, and verify that the outlet is supplying power.
