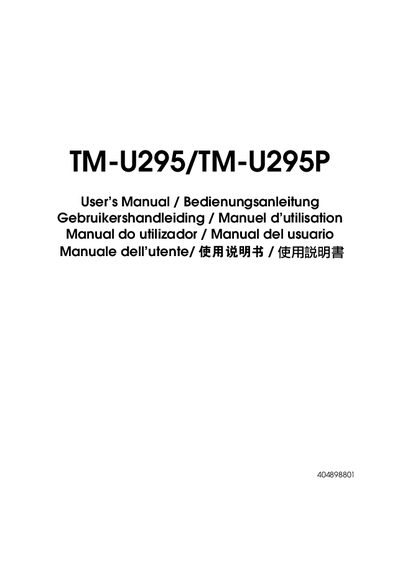

This document is the user manual for TM-U295/TM-U295P printer
This manual provides step‑by‑step instructions for unpacking, installing the ribbon cassette, loading paper, and operating the Epson TM‑U295/TM‑U295P impact printer. Safety precautions, troubleshooting tips, and detailed technical specifications are also included.
The document is intended for end users and service personnel, offering guidance on proper power connections, interface options, and maintenance procedures to ensure reliable performance in commercial environments.
| Printing method | Impact dot matrix, 7‑pin shuttle type |
|---|---|
| Printing direction | Unidirectional |
| Print speed | 1.9 to 2.3 lines/sec |
| Paper feed speed | ≈12.5 lines/sec (62.9 mm/sec) |
| Weight | ≈1.6 kg |
| Power supply | +24 VDC ±10 % |
| Interface | RS‑232 serial or IEEE 1284 parallel |
| Receive buffer | 512 bytes or 35 bytes |
| MTBF | 180,000 hours |
| Operating temperature | 5 °C to 40 °C |
When the RELEASE LED is lit, the printer is in paper‑release mode, allowing you to insert or remove paper safely.
