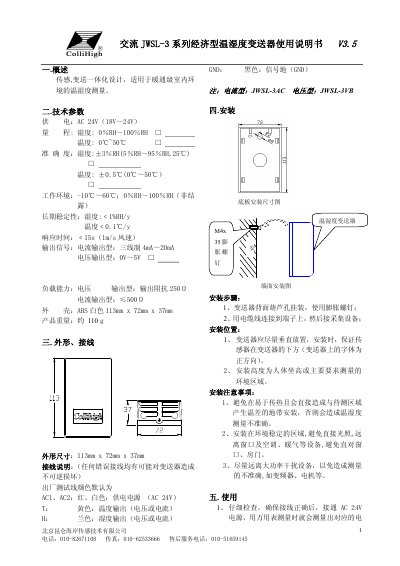

JWSL-3 series temperature and humidity transmitter is suitable for temperature and humidity measurement in HVAC grade indoor environment.
The JWSL-3 series is an economical temperature‑humidity transmitter designed for indoor HVAC environments. It integrates sensor and transmitter functions and provides both 4‑20 mA current and 0‑5 V voltage outputs.
The manual details technical parameters, physical dimensions, wiring colour codes, installation steps, operating instructions, safety precautions, maintenance, storage, and troubleshooting procedures. This manual is written in Chinese.
| Power supply | AC 24 V (1.8 V–24 V) |
|---|---|
| Humidity measurement range | 0 % RH – 100 % RH |
| Humidity accuracy | ±3 % RH (5 % RH–95 % RH, 25 °C) |
| Temperature accuracy | ±0.5 °C (0 °C–50 °C) |
| Operating environment | -10 °C – 60 °C, 0 % RH – 100 % RH (non‑condensing) |
| Long‑term stability (humidity) | < 1 % RH per year |
| Response time | < 15 s (1 m/s wind) |
| Current output | 4 mA–20 mA, three‑wire |
| Voltage output | 0 V–5 V |
| Load resistance (voltage output) | 250 Ω |
| Load resistance (current output) | ≤ 500 Ω |
| Enclosure material and colour | ABS, white |
| Dimensions | 113 mm × 72 mm × 37 mm |
| Weight | ≈ 110 g |
Mount the transmitter vertically using expansion screws, keep the sensor below the unit, place it at human‑height level, and avoid direct sunlight, windows, or nearby high‑power equipment.
It is recommended to calibrate the transmitter at least once a year to maintain measurement accuracy.
Store the transmitter at 10 °C–40 °C with relative humidity of 20 %–80 %.
