This document is about Panasonic's distributor hotline and price list. The document provides contact information for Panasonic's distributor hotline and price list, as well as detailed specifications and dimension drawings for imported terminals from Japan.

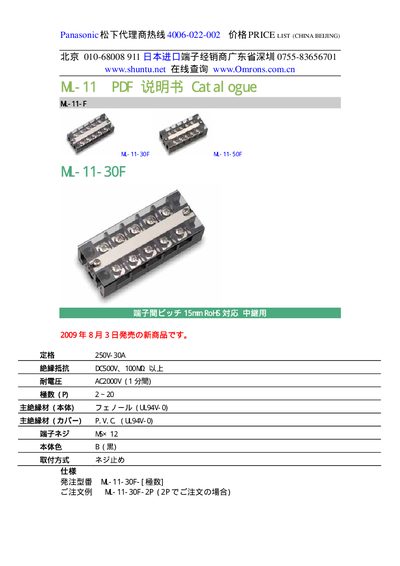

This leaflet provides an overview of the Panasonic ML-11 series of terminals, including their electrical ratings, material specifications, and available configurations. It is intended for distributors and engineers who need detailed part information.
The document lists numerous part numbers such as ML-11-30F-2P, ML-11-50A-10P, and includes key specifications like a rated 250 V / 30 A, dielectric resistance of DC500 V with 100 MΩ or higher, and an AC withstand voltage of 2000 V. Contact information for Panasonic distributors in China is also provided. This manual is written in Chinese.
| Rated voltage / current | 250 V / 30 A |
|---|---|
| Dielectric resistance | DC500 V, 100 MΩ or higher |
| Withstand voltage (AC) | 2000 V |
| Number of poles | 2 ~ 20 |
| Body material | UL94V0 |
The ML-11 terminals are rated for 250 V and 30 A.
They have a dielectric resistance of DC500 V with 100 MΩ or higher.
The series offers configurations from 2 to 20 poles.
