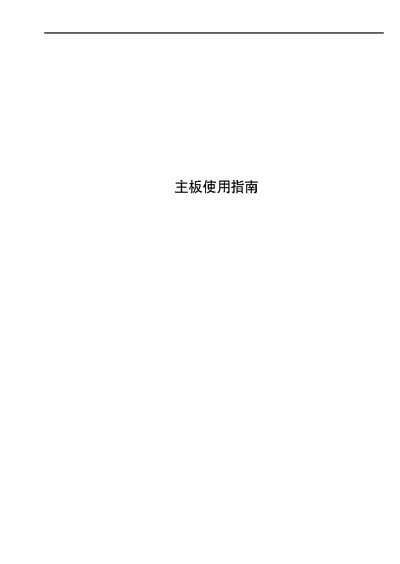

This manual provides an overview of the Lenovo MS6137EL2B motherboard, including its key features such as the Intel 810 chipset, Micro‑ATX form factor, dual 168‑pin DIMM slots, integrated AC97 audio and Ethernet controller, and various expansion slots. It also describes the BIOS configuration options and the system monitoring capabilities.
Detailed sections cover connector pinouts (power switch, reset switch, LED indicators, speaker, USB, etc.), CMOS and wake‑up jumpers, and step‑by‑step driver installation procedures for the chipset, video, and audio components. The guide includes safety notes and instructions for resetting the BIOS if needed. This manual is written in Chinese.
| Chipset | Intel 810 |
|---|---|
| Form factor | Micro‑ATX |
| Memory slots | 2 × 168‑pin 3.3 V DIMM, 8‑512 MB SDRAM each |
| Integrated audio | AC97 sound card |
| USB ports | 1 USB port |
| BIOS type | Award BIOS with Flash ROM support |
Short pins 1‑2 on the CMOS clear jumper JBAT1 to clear the CMOS settings.
Insert the Lenovo driver CD, go to D:\NLX_ChipN8loinfAInf\Utility and run SETUP.EXE to install the chipset driver.
