EASYCO brushless motor electronic speed controller user manual, mainly introduces the function characteristics, product specifications, parameter setting instructions and other content.

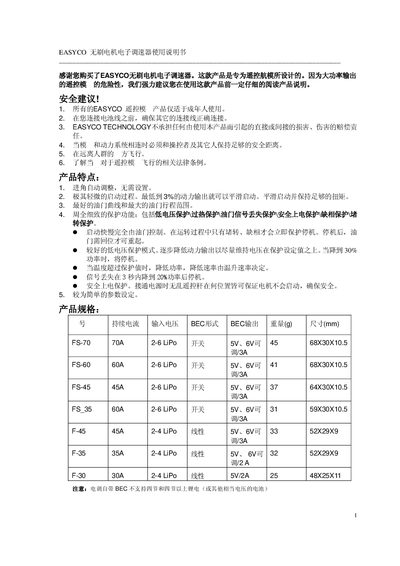

This manual describes the EASYCO brushless motor electronic governor (ESC) designed for radio‑controlled model aircraft. It explains the product’s features, safety recommendations, and technical specifications for the FS‑70, FS‑60, FS‑45, FS‑35, F‑45, F‑35 and F‑30 models.
Key sections cover safe handling, installation and wiring, throttle‑range and low‑voltage protection settings, BEC output selection, flight‑mode configuration, and detailed troubleshooting procedures for common fault conditions such as loss of throttle signal or motor stall. This manual is written in Chinese.
| Continuous current (FS-70) | 70 A |
|---|---|
| Input voltage range (FS-60) | 2‑6 LiPo |
| BEC output voltage (default) | 5 V |
All EASYCO RC products are for adult use only; ensure all connections are correct before connecting the battery, keep a safe distance from people, and follow local flight regulations.
Select one of the four levels (high, medium, low, lowest) using the throttle stick; the default setting is the low level.
The ESC stops the motor after the signal is lost for 3 seconds and will not restart until the throttle stick is returned to the low position.
Set the BEC output to either 5 V or 6 V; the default is 5 V.
