PTW-983IR infrared 23 times optical zoom night vision long distance outdoor high speed ball, support horizontal 360 ° unlimited rotation, vertical 90 ° action, with 128 preset points, Chinese and English operation function table and function display and other functions

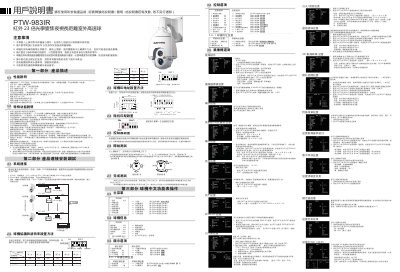

This manual describes the PTW-983IR infrared PTZ camera, including its 23× optical zoom, 120‑150 m infrared range, and outdoor‑rated IP66 housing. It covers product description, wiring, configuration, and special functions such as preset points, vector scans, and privacy masking.
Installation steps, RS‑485 communication setup, protocol and baud‑rate settings, and detailed menu navigation are provided. The guide also includes a troubleshooting section and a comprehensive appendix of character codes for Chinese input. This manual is written in Chinese.
| Horizontal rotation | 360° continuous |
|---|---|
| Vertical rotation | 90° |
| Horizontal manual speed | 0.1°‑150°/s |
| Vertical manual speed | 0.1°‑55°/s |
| Power supply | AC 24 V / 3 A |
| Video output | 1 Vp‑p 75 Ω |
| Infrared range | 120‑150 m |
It provides 128 preset positions.
The camera runs on AC 24 V at 3 A.
Control is performed via a long‑distance RS‑485 bus.
The infrared illumination reaches 120 to 150 meters.
