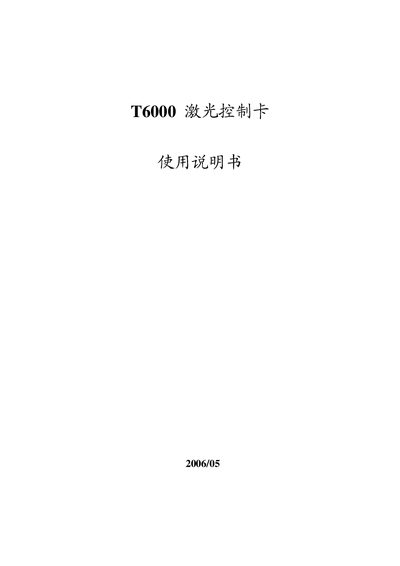

This manual describes the T6000 laser control card, a multifunction device for laser control offering four analog output channels, two PWM digital signal output channels, and 26‑bit TTL digital I/O. It includes performance specifications such as 16‑bit analog resolution, 0‑10 V or 0‑5 V output range, and a 100 ns control cycle.
The document also details the internal architecture based on a 32‑bit DSP core, PCI/PCI‑X bus compatibility, and pin assignments for connectors CN1, CN2, and CN3, along with voltage and current limits for the various I/O signals. This manual is written in Chinese.
| Analog output channels | 4 |
|---|---|
| Analog output resolution | 16 Bit |
| Analog output voltage range | 0‑10 V or 0‑5 V |
| PWM output resolution | 16 Bit |
| Digital input (DI) width | 26 Bit TTL compatible |
| Digital output (DO) width | 26 Bit TTL compatible |
| Control cycle time | 100 ns |
| PCI bus compatibility | PCI 2.2 |
| Operating system compatibility | Windows 2000, XP |
The T6000 provides four analog output channels.
The analog outputs can be configured for 0‑10 V or 0‑5 V ranges.
The control cycle time is 100 ns.
The card is compatible with Windows 2000 and Windows XP.
