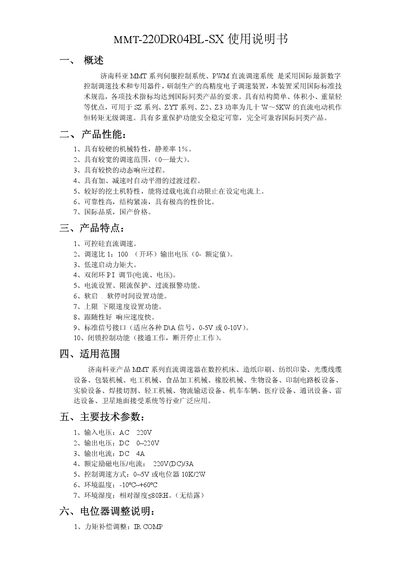

MMT-220DR04BL-SX DC speed controller user manual, introduces the performance, features, applicable range, main technical parameters, potentiometer adjustment instructions, wiring terminal instructions and other content of the product.
The MMT-220DR04BL-SX is a high‑precision servo controller designed for CNC machines, printing equipment, food‑processing machinery, and other industrial applications. It offers compact size, low weight, and multiple safety functions.
Key features include a speed ratio of 1:100, adjustable acceleration/deceleration, limit speed settings, and various signal interfaces (0‑5V or 0‑10V). The manual details technical parameters, connector pin assignments, and configuration options for optimal performance. This manual is written in Japanese.
| Input voltage | AC 220V |
|---|---|
| Output voltage range | DC 0-220V |
| Output current | DC 4A |
| Rated excitation voltage/current | 220V / 0.3A |
| Operating temperature range | -10°C to +60°C |
The controller operates from an AC 220 V input.
It supplies a DC output voltage adjustable from 0 V to 220 V.
The maximum speed is limited by the MAX SPD setting in the control parameters.
