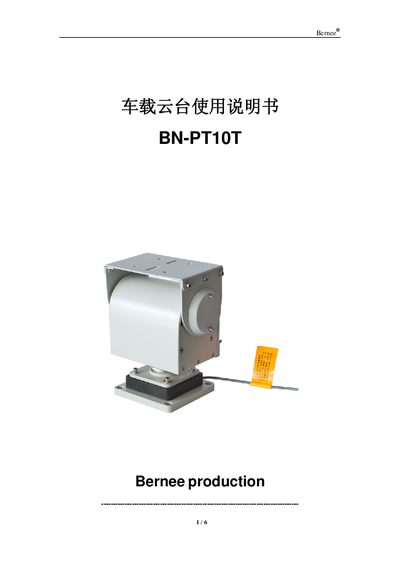

This document is the user manual for Bernee® 1/6 Vehicle-Mounted Gimbal, which introduces the safety measures, precautions, product overview, wiring instructions, installation instructions, and gimbal rotation position adjustment methods.
The BN-PT10T is an outdoor car‑mounted PTZ gimbal that uses a gear and worm‑gear drive with a high‑performance motor for smooth operation and built‑in stabilization. It is available with either a suction‑type or a bolted‑type base plate, allowing flexible mounting on vehicle roofs.
The manual covers important safety measures, wiring connections (DC12V supply, control lines), step‑by‑step installation, rotation‑angle adjustment for both vertical and horizontal axes, and lists the main technical parameters such as voltage, speed, load capacity, and operating temperature. This manual is written in Chinese.
| Input voltage | DC12V (±10%) |
|---|---|
| Horizontal rotation angle | 0° ~ 356° |
| Power consumption (temperature control, optional) | 15 W |
| Weight | 6.5 kg |
| Operating temperature (standard) | -10 °C ~ 50 °C |
| Operating temperature (temperature‑control model) | -30 °C ~ 50 °C |
It requires a DC12V supply, with a tolerance of ±10 %.
Remove the side cover, loosen the vertical limit screw, move the limit piece to the desired position, then tighten the screw.
