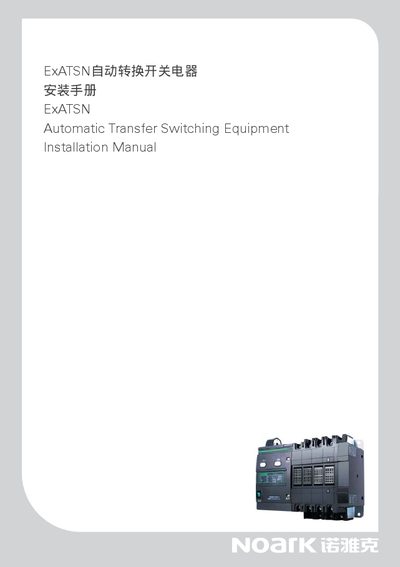

ExATSN Automatic Transfer Switching Equipment Installation Manual, introduces the product's unpacking list, preparation work, operating instructions, external shape and installation dimensions, wiring, use environment, technical parameters and other contents
This manual provides safety precautions and preparation steps required before installing the ExATSN automatic transfer switch. It explains how to set the control panel to the correct position, connect the neutral conductor, and avoid unauthorized modifications.
The guide details mechanical dimensions, mounting procedures, wiring connections for primary and secondary circuits, torque specifications for mounting bolts, and a troubleshooting section for common fault symptoms such as indicator lights not illuminating. This manual is written in Chinese.
| Dimensions (ExATSN1‑3P) | 143 × 243 × 263 mm |
|---|---|
| Dimensions (ExATSN2‑4P) | 173 × 273 × 293 mm |
| Mounting Torque (M8 bolt) | 10 Nm |
| Mounting Torque (M10 bolt) | 18 Nm |
Apply 7 Nm for M6 bolts, 10 Nm for M8 bolts, and 18 Nm for M10 bolts.
