PK6011/6013/6015 is an intelligent electrical parameter acquisition module that can measure current, voltage, power, power factor, frequency, and energy parameters, and output them as RS-485 digital signals.
The PK6011/6013/6015 series are intelligent electricity parameter collection modules that measure voltage, current, power, power factor, frequency and energy on single‑phase or three‑phase circuits. The modules output RS‑485 digital signals and can replace traditional transducers.

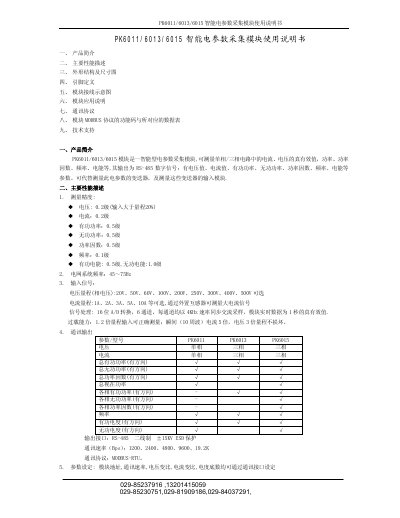

The manual provides product introduction, performance specs, mechanical dimensions, pin definitions, wiring diagrams, application notes, Modbus‑RTU communication details, configuration procedures and technical support information. This manual is written in Chinese.
| Voltage range | 20 V, 50 V, 60 V, 100 V, 200 V, 250 V, 300 V, 400 V, 500 V (selectable) |
|---|---|
| Current range | 1 A, 2 A, 3 A, 5 A, 10 A (selectable, larger currents via external CT) |
| Power supply | DC +8 V to +30 V, power consumption < 0.5 W |
| Operating temperature | -20 °C to 70 °C (storage -40 °C to 85 °C) |
| Dimensions | 71 mm × 113 mm × 59 mm |
When shipped, the module address is set to 01 and the baud rate is 9600 Bps.
Up to 64 modules can be placed on one RS‑485 bus; using repeaters up to 256 modules can be linked.
The module communicates using the Modbus‑RTU protocol.
It requires a DC supply of 8 V to 30 V and consumes less than 0.5 W.
