K23D data acquisition device integrates wireless communication module, can be powered by internal battery, low power consumption, IP65 protection level. It has advanced technology, stable and reliable, small size, easy to install, very suitable for urban gas pipeline, water supply pipeline and other line monitoring and data acquisition, suitable for water conservancy, water conservancy, agriculture and other wild environment, no power area and harsh environment data acquisition.
The K23D is a low‑power wireless remote terminal unit with IP65 protection, suitable for pipeline and environmental monitoring. It integrates multiple analog and digital inputs, relay outputs, and optional GPRS/CDMA communication.

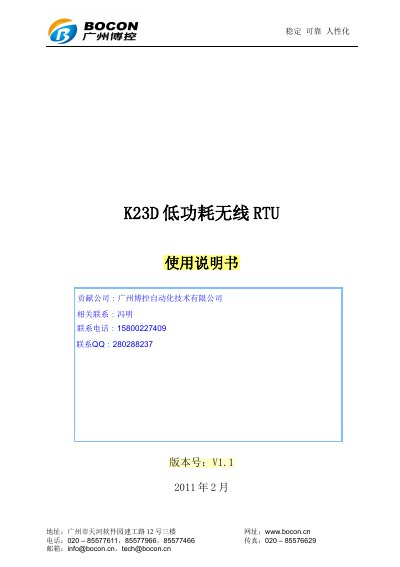

The manual covers hardware specifications, wiring diagrams, I/O functions, power options (including battery and solar), and software features such as timed data acquisition, alarm handling, and remote configuration. This manual is written in Chinese.
| Protection rating | IP65 |
|---|---|
| Standby current | < 1mA |
| Operating temperature | –30℃ to +70℃ |
| Dimensions | 240 × 150 × 60 mm |
The K23D offers 7 analog input channels, with up to 3 configurable as differential inputs.
The built‑in GPRS module supports TCP, Modbus TCP, UDP, SMS, DHCP, SMTP, POP3, HTTP, and FTP.
