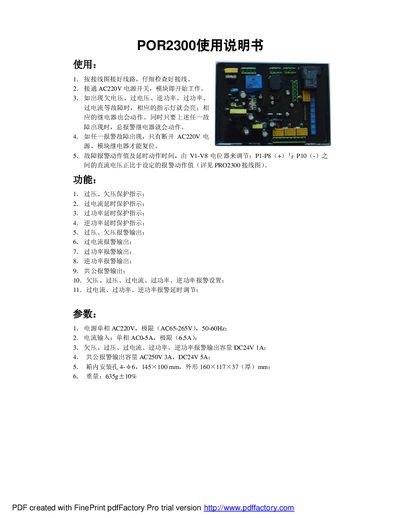

POR2300 generator protection module instruction manual, mainly introduces the module wiring method, function, parameters, use method, etc.
The PRO2300 manual provides step‑by‑step instructions for connecting the unit to an AC220 V supply, configuring the alarm indicators, and operating the device. It describes how to interpret the status lights and how to set timing parameters using the V1‑V8 and P1‑P8 terminals.
Technical data are listed, including input voltage range (AC220 V, 50‑60 Hz), input current (6.5 A), DC24 V output capacities (1 A and 3 A), AC250 V output (3 A), dimensions (145 × 100 mm, 160 × 117 × 37 mm) and weight (635 g). The manual also includes wiring diagrams and fault‑indicator explanations. This manual is written in Chinese.
| DC24 V output (low current) | 1 A |
|---|---|
| DC24 V output (high current) | 3 A |
| AC250 V output | 3 A |
| Dimensions (mounting hole) | 145 × 100 mm |
