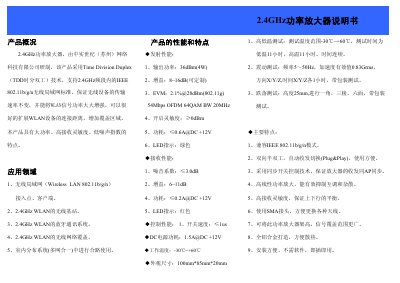

The document introduces the performance and characteristics of a 2.4GHz power amplifier, including high and low temperature testing, vibration testing, drop testing, sensitivity, power consumption, etc. The product features high power, high reception sensitivity, and low noise coefficient, and is suitable for applications such as wireless LAN, wireless base stations, and Bluetooth communication systems.
The 2.4GHz power amplifier from Zhongshi Century is designed for WLAN applications such as access points, clients, and indoor distribution systems. It offers high output power, low noise, and dual‑band compatibility with IEEE 802.11b/g/n standards.
The manual covers performance specifications, detailed installation procedures (including antenna removal and SMA connector wiring), maintenance guidelines, packaging contents, and warranty terms. It also lists power requirements and physical dimensions for easy integration. This manual is written in Chinese.
| Output Power | 36dBm (4W) |
|---|---|
| Gain | 8~16 dB (customizable) |
| EVM | 2.1% @ 28dBm (802.11g) |
| Sensitivity | ≥0 dBm |
| Power Consumption | ≤0.6 A @ 12 V DC |
| LED Indicator (Tx) | Green |
| LED Indicator (Rx) | Red |
| Switch Speed | ≤1 µs |
| Operating Temperature | -30 °C to +60 °C |
| Dimensions | 100 mm × 85 mm × 20 mm |
| Input Voltage | AC100‑240 V, 50/60 Hz |
| Output Voltage | DC12 V, 1.5 A |
First remove the router’s antenna, connect it to the amplifier’s RFout SMA port, then use the supplied RF cable to link the router’s RFin SMA port, and finally connect the power adapter.
It can operate from –30 °C up to +60 °C.
