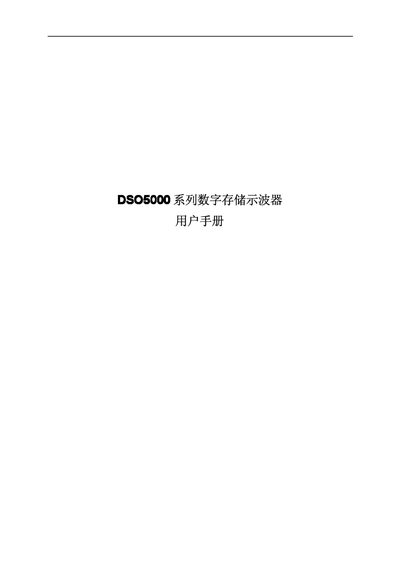

DSO5000 series digital storage oscilloscope user manual, introduces the main functions, basic operations, application examples and other contents of the oscilloscope.
This manual introduces the DSO5000 series oscilloscope, covering safety precautions, product overview, and the built‑in help system. It guides users through installation, power connection, probe setup, and basic function checks.
Further sections describe the main functions, detailed operation modes, application examples, troubleshooting, performance specifications, and service support. Appendices list hazardous substances and provide an index for quick reference. This manual is written in Chinese.
| Vertical resolution | 8‑bit |
|---|---|
| Vertical scale range (BNC input) | 2 mV/div to 5 V/div |
| Bandwidth | up to 200 MHz (typical 6 MHz for X1 probe) |
| Maximum real‑time sampling rate | 1 GS/s |
| Power supply voltage | 90 V – 240 V RMS, 45 Hz – 440 Hz |
Use a power source with voltage between 90 V and 240 V RMS and frequency between 45 Hz and 440 Hz.
