Mega Vac is a high-performance, large-capacity vacuum cleaner designed for purification and anti-static requirements. It features a 0.3 micron efficiency filter that filters dust and other particles, and can be optionally equipped with a 0.12 micron HEPA filter. The vacuum cleaner has a shielded design to prevent EMI/RFI noise interference and utilizes grounding of the motor and static dissipative materials to prevent static charge accumulation.

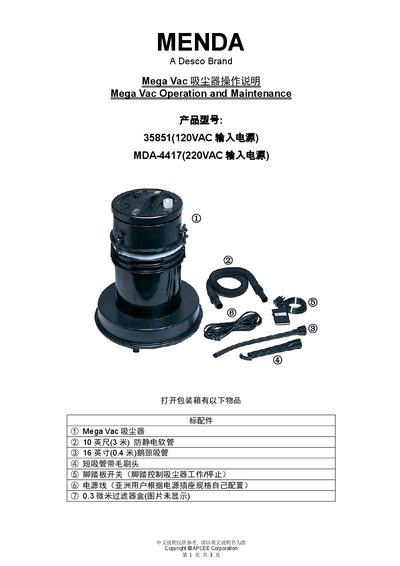

The manual begins with a list of items included in the package, such as the Mega Vac unit, anti‑static hose, 16‑inch nozzle, short hose with brush head, foot‑pedal switch, power cord, and a 0.3 µm filter. It explains how to connect the anti‑static hose to the intake port, attach the desired nozzle, and power the unit via the foot‑pedal switch for safe operation.
The document also describes maintenance procedures, noting that the filter should be replaced after regular use, and provides the product specifications for the MDA-4417 (220 VAC) model, including voltage, power consumption, suction force, filter capacity, housing material, weight, and safety warnings.
| Input voltage | 230 V / 50 Hz |
|---|---|
| Power consumption | 628 W |
| Filter rating | 0.3 µm, 5 gallon capacity |
| Suction pressure | 15 kPa |
| Housing material | Fire‑resistant ABS |
| Weight (including accessories) | 8 kg |
| Unsuitable for heated items | Yes |
| Unsuitable for liquids (especially flammable) | Yes |
The MDA-4417 model operates on 230 V at 50 Hz.
After a period of use, the filter should be replaced as shown in the maintenance section.
The product must be properly grounded to prevent static charge buildup.
