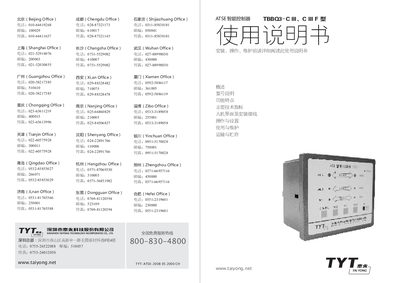

This document is a user manual for the ATSE smart controller, which provides information on the installation, operation, and maintenance of the controller.
This document describes the ATSE intelligent controller series developed by Taiyong. It covers model identification, functional features, main technical parameters, and the human‑machine interface.
The guide includes detailed wiring diagrams, operation modes (automatic, manual, and setting), safety precautions, and instructions for packaging and storage. This manual is written in Chinese.
| Operating voltage | 1S0V‑260V |
|---|---|
| Power consumption | <10W |
| Operating temperature | -10°C to 50°C |
| Weight | 700 g |
| Protection rating | IP20 |
| Breaker parameters | AC 250V 25A, DC 28V 20A |
The controller operates from 1S0V up to 260V.
Its power consumption is less than 10 W.
It works between –10 °C and 50 °C and can be stored between –20 °C and 70 °C.
The front panel has eight indicator lights.
