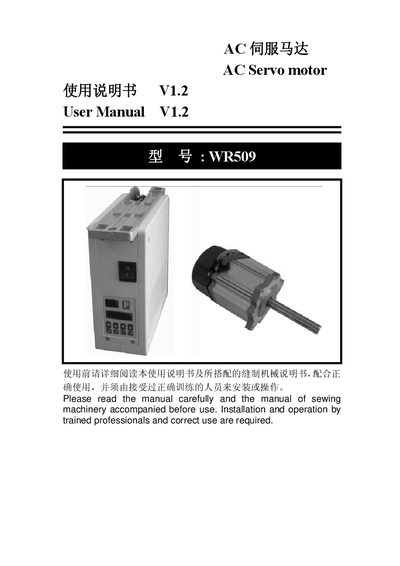

AC Servo motor user manual, introduces the safety precautions for using the product, the installation, wiring and adjustment methods of the product, and the function parameter setting method of the product.
The Flex WR509 AC servo motor manual provides detailed safety guidelines, installation steps, wiring and grounding instructions, and a description of all chassis components. It also explains how to use the operation panel, set system parameters, and adjust functions such as treadle force and pressor foot behavior.
A comprehensive fault‑code table and troubleshooting procedures are included, along with parameter tables that define speed ranges, voltage requirements, and other performance settings for proper integration with sewing machinery. This manual is written in Chinese.
| Power supply voltage | 200 V–240 V |
|---|---|
| Operating temperature range | 5 °C – 45 °C |
| Maximum free‑sewing speed | 300 – 4000 spm |
| Minimum treadle speed (low speed) | 100 – 1000 spm |
The motor must be powered with a voltage between 200 V and 240 V as indicated on the motor and controller nameplates.
Do not operate the motor in environments hotter than 45 °C or colder than 5 °C.
Turn spring A clockwise to increase front treadle force, or counter‑clockwise to decrease it.
The free‑sewing speed can be set between 300 and 4000 stitches per minute (spm).
