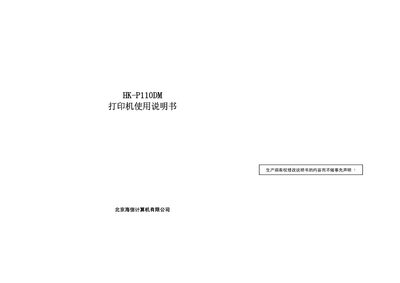

HK-P110DM printer user manual, introduces the printer's performance indicators, operating instructions, printing control commands, cutting/tearing paper position offset and initial printing position offset setting, and usage precautions.
This manual provides detailed information for the Hisense HK-P110DM receipt printer, covering performance specifications, hardware layout, and command sets. It includes instructions for connecting the parallel interface, cash‑drawer, and handling paper and ribbon supplies.
The document also describes the black‑mark positioning system, automatic paper feeding, self‑test procedures, and safety precautions for installation and maintenance. Users can reference command tables for ESC/POS and FS Chinese character commands to customize printing output. This manual is written in Chinese.
| Printing speed | ≈3.3 lines/second (double‑direction) |
|---|---|
| Effective print width | 35 columns (full dot) / 42 columns (half dot) |
| Print density | 210 (full dot) / 420 (half dot) |
| Paper width | 76.2 mm ±0.5 mm |
| Paper thickness (single layer) | 0.06–0.085 mm |
| Power input | DC 24 V ±10%, 2 A avg, 7 A max |
| Interface | Parallel DB25, 8‑bit, BUSY /ACK handshake, TTL level |
| Ribbon type | Standard ribbon, silver C‑39, purple or black |
| Printing mechanism reliability | 5 million lines |
| Operating temperature range | 5 °C – 40 °C |
It uses a parallel DB25 connector with an 8‑bit data bus, supporting BUSY and /ACK handshake signals at TTL level.
Power on the printer and press the LF (paper‑feed) key; this enters the self‑test mode.
The printer can print at about 3.3 lines per second in double‑direction mode.
It requires a DC 24 V supply with ±10% tolerance, drawing an average of 2 A and up to 7 A peak.
