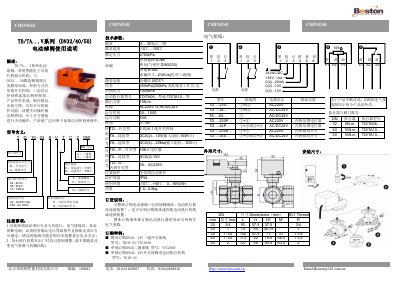

TD/TA.V series electric ball valve instruction manual, this series of electric ball valves adopt intelligent electronic angle stroke actuator, and are perfectly combined with DN32.50 forged copper ball valves. The control methods include single line switch control, three-state floating point control and continuous proportional control. The products are beautiful in appearance, well-made, easy to install, and have full stroke protection function. The hand-held operating handle and release button can be very conveniently operated manually. The products are widely used in fluid automatic control systems.
The TD/TA...V series electric ball valve uses an intelligent electronic angular‑stroke actuator that mates with DN32, DN40 or DN50 forged copper bodies. It supports single‑wire switch control, three‑state floating control, and continuous proportional control, and includes a manual operation handle and release button for easy manual operation.
Installation and commissioning must be performed by qualified personnel. Electrical connections must be made with power off, and the voltage level must be verified before energizing. The manual also lists ordering options for complete valve assemblies or separate valve bodies and actuators, and provides detailed wiring diagrams and actuator codes. This manual is written in Chinese.
| Medium | Water, 50% ethylene glycol |
|---|---|
| Operating Temperature | -10 °C to 100 °C |
| Rated Pressure | 2760 kPa |
| Pressure Differential | 350 kPa (200 kPa low‑noise) |
| Closing Pressure | 1400 kPa |
| Actuator Model | TD/TA06 or TD/TA10 |
| Output Torque | 10 N·m |
| Power Supply | AC 220 V or AC/DC 24 V |
| Power Consumption | 6 VA |
| Ingress Protection | IP54 |
Installation and commissioning must be performed by professional personnel, the power must be disconnected before wiring, and the voltage level must be verified before energizing to avoid damage or safety hazards.
The valve supports single‑wire switch control, three‑state floating control, and continuous proportional control (DC 0‑10 V or 0‑20 mA).
Yes, the valve can be ordered as a complete assembly (valve body, actuator, and connection hardware) or with the valve body, actuator, or connection hardware purchased separately.
