The BTZ-W100 temperature and humidity controller can be used in high and low voltage switch cabinets, box substations, terminal boxes and other electrical control equipment, and is used in conjunction with heating and dehumidification elements to achieve environmental temperature and humidity control. The controller has temperature logic control and condensation logic control functions, which can achieve temperature control range of 5℃～15℃, humidity control range of 10%RH～95%RH, condensation start point of 93%RH. The controller adopts high-performance imported sensors, high precision, reliable work.

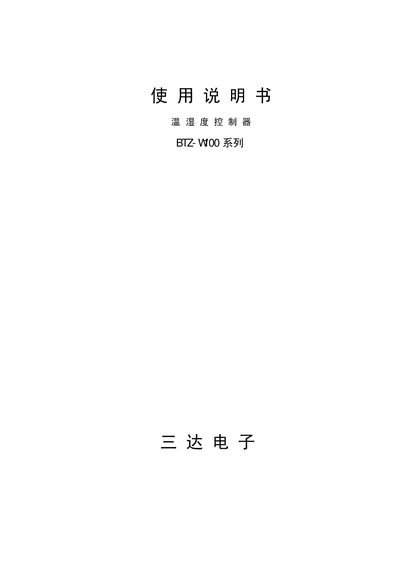

This manual provides the basic functions, installation steps and operating instructions for the BTZ‑W100 temperature and humidity controller. It describes how the device controls temperature and humidity, the wiring connections, and safety precautions.
The document also lists the technical specifications such as power supply, temperature and humidity ranges, control accuracy, power consumption and physical dimensions, helping users to set up and maintain the controller correctly. This manual is written in Chinese.
| Power supply | AC 220 V ±10 % |
|---|---|
| Operating temperature range | -20 °C ~ 70 °C |
| Operating humidity range | 20 % ~ 95 % RH |
| Temperature control range | 5 °C ~ 15 °C |
| Temperature control accuracy | ±1 °C |
| Humidity control accuracy | ±5 % RH |
| Dimensions | 48 mm × 48 mm × 90 mm |
It can operate from –20 °C to 70 °C.
It can be installed as a panel‑mount, a chassis‑mount, or a surface‑mount unit.
