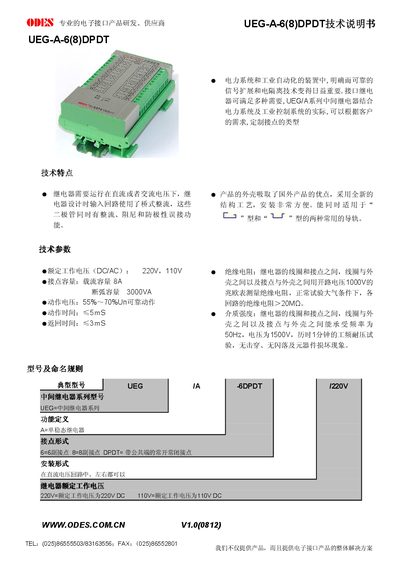

This document introduces the technical features of ODES' electronic interface product UEG-A-6(8)DPDT. The product is designed with a bridge rectifier input circuit, which has rectification, damping, and protection against polarity misconnection functions. The product's housing adopts a new structure process, which is easy to install. The rated operating voltages of the product are 220V and 110V, with a contact capacity of 8A and an arc-breaking capacity of 3000VA. The relay's operating voltage range is 55% to 70%Un, with an action time of ≤5ms and a return time of ≤3ms. The insulation resistance of the relay is greater than 20MΩ, and the dielectric strength can withstand a frequency of 50Hz, voltage of 1500V, and a 1-minute power frequency withstand test. This product is suitable for signal expansion and electrical isolation technology in power systems and industrial automation devices.
This manual describes the technical features and specifications of the UEG-A series DPDT relays, including rated voltage options of 220 V DC and 110 V DC, contact current rating of 8 A, and a breaking capacity of 3000 VA. It also outlines the relay’s insulation resistance, actuation voltage range (55‑70 % of rated), and timing characteristics.
The document includes a circuit diagram with terminal definitions, installation guidance for DIN rail mounting, and ordering information such as required voltage level and any special requirements. Contact details for the supplier are provided at the end of the manual. This manual is written in Chinese.
| Rated Working Voltage (DC/AC) | 220 V, 110 V |
|---|---|
| Insulation Resistance | >20 MΩ |
| Contact Current Capacity | 8 A |
| Breaking Capacity | 3000 VA |
| Actuation Voltage | 55 %–70 % of rated voltage |
| Operating Time | 5 ms |
| Release Time | 3 ms |
| Dielectric Strength (AC) | 1500 V for 1 min at 50 Hz |
The relay is rated for 220 V DC and 110 V DC.
Each contact can carry up to 8 A.
The relay can interrupt up to 3000 VA.
The relay operates reliably at 55 % to 70 % of its rated voltage.
